1. Introduction

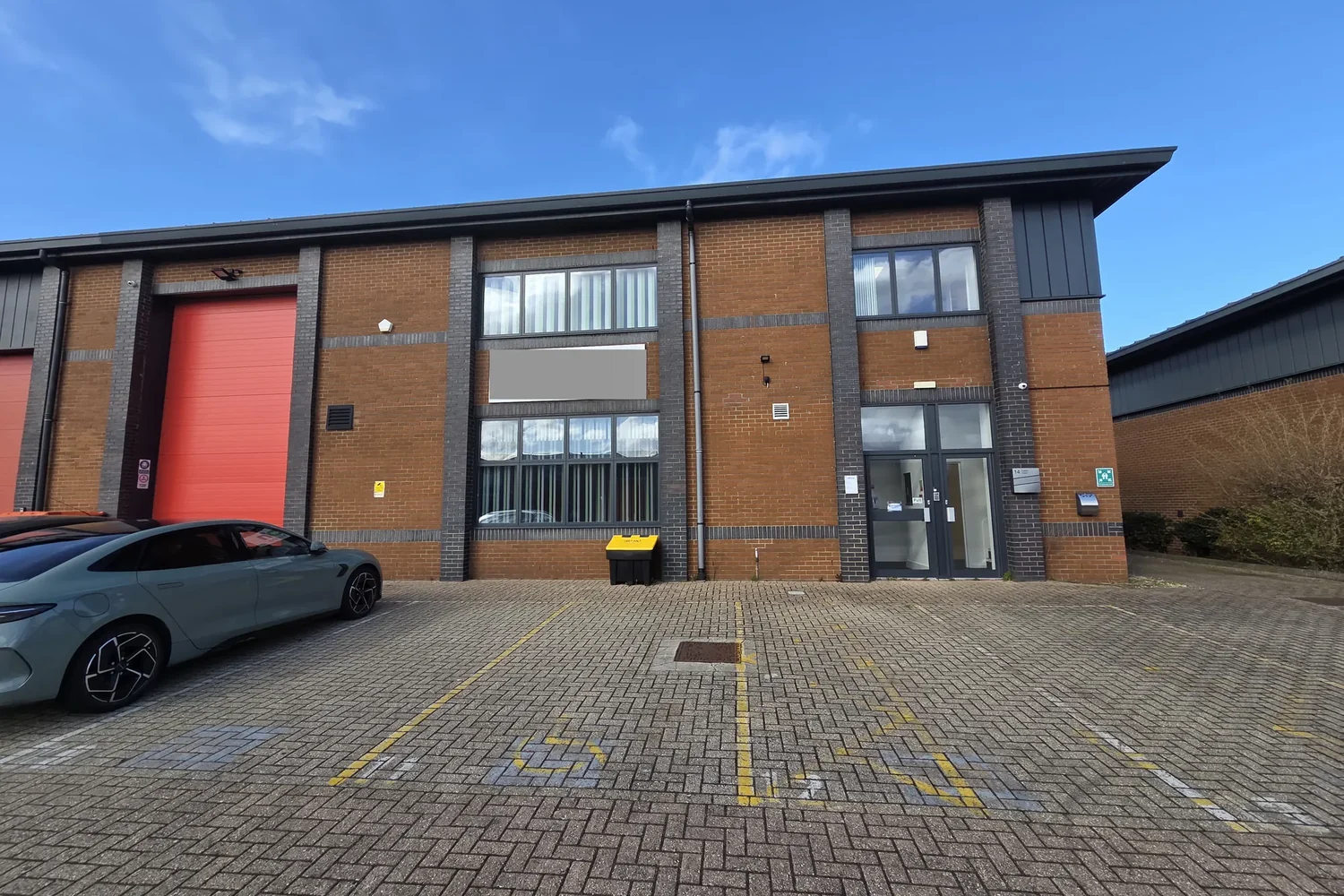

Almost every project to alter, extend, convert or sell an existing building starts with the same question: what is actually there? Old drawings are often missing, out of date or drawn from memory, and walls are rarely as straight, square or level as they look on paper.
A measured building survey answers that question with data you can rely on. This article explains why accuracy matters, where mistakes come from and what a good survey gives you.
2. The cost of getting it wrong
Design built on inaccurate information tends to fail later, when it is expensive to fix. Typical consequences include:
- drawings that need reworking once a discrepancy is found on site;
- fitted joinery, glazing or steelwork that does not fit the opening;
- delays to planning or building control while drawings are corrected;
- disputes between design team, contractor and client about who is responsible.
Small dimensional errors compound. A few centimetres out on each wall can mean a stair that does not fit or a unit that will not go through a door.
3. What accurate data gives you
- Confident design. Architects and engineers work from verified dimensions rather than assumptions.
- Smoother approvals. Planning and building regulations drawings that match the building are quicker to validate and less likely to be queried.
- Reliable areas. Measured GIA and NIA figures support leasing, valuation and fee calculations. See our guide to GIA and NIA floor plans.
- Fewer surprises. Level changes, out-of-square walls and hidden constraints are identified before work starts.
- A lasting record. The survey becomes a reference for future alterations, maintenance and facilities management.
4. How accuracy is achieved

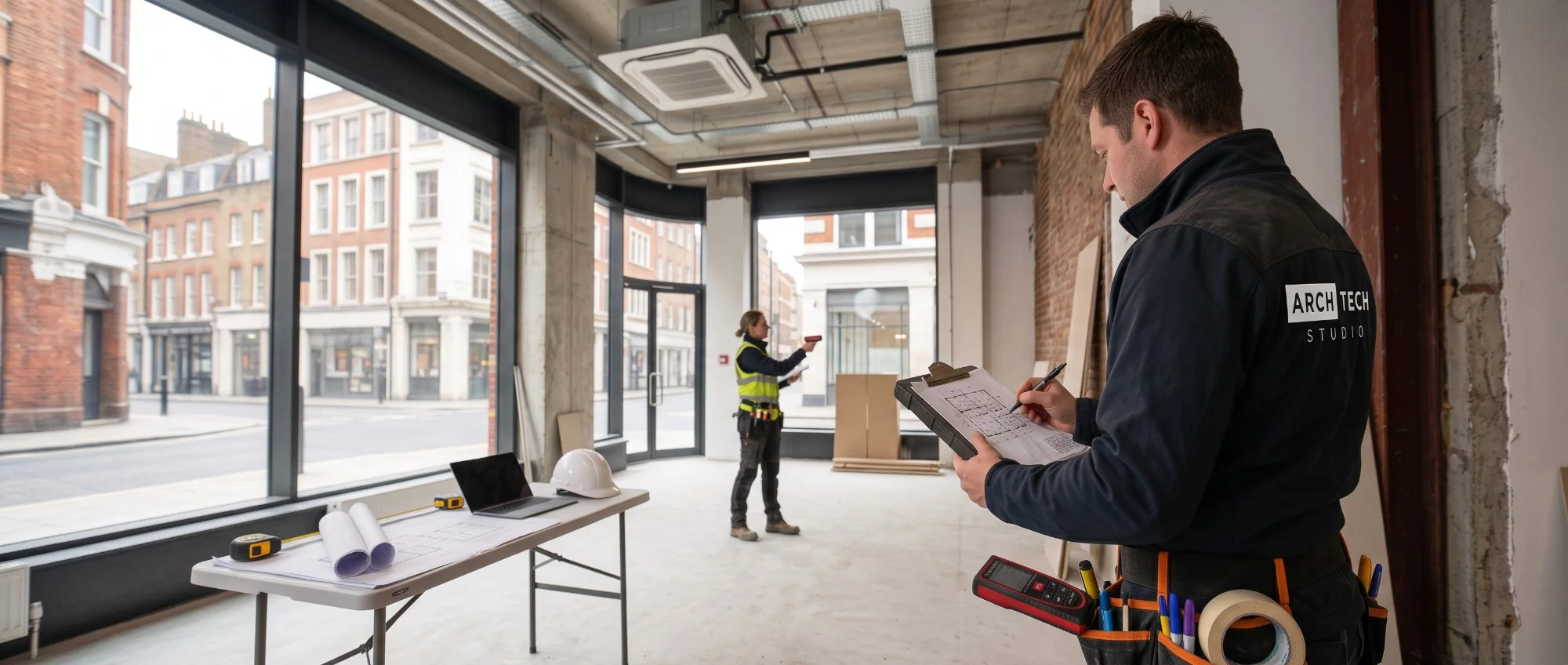

Modern surveys combine laser scanners, total stations and carefully taken hand measurements. A laser scan captures millions of points to form a detailed point cloud of the building, which is then processed into CAD drawings or a 3D model. Hand measurement is still used for small details and to check key dimensions.
The right method depends on the building and the use of the information. A straightforward floor plan for a lease needs less than a heritage facade drawn for restoration. It is worth agreeing the required level of detail and tolerance at the start so the survey is neither under- nor over-specified.
5. FAQs
How accurate is a measured building survey?
It depends on the specification. Laser scanning and total station surveys can record dimensions to within a few millimetres, while drawings are usually produced to a stated tolerance suited to the project. We agree this with you before the survey.
Can I rely on existing drawings instead?
Existing drawings are a useful starting point but are often out of date or inaccurate, and they are rarely suitable as the sole basis for design or for planning and building regulations submissions. We recommend verifying them with a survey.
Does a survey disrupt the building?
Rarely. Surveys are usually carried out in occupied buildings with little disturbance. We agree access and timings in advance.
How long does a survey take?
Most surveys are completed on site in a day or less, with drawings following. Larger or more complex buildings take longer. We confirm a programme with every quote.
